| Lieu d'origine: | Chine |
| Nom de marque: | TOPER |
| Certification: | CE |
| Numéro de modèle: | Le nombre d'étoiles est le suivant: |
| Quantité de commande min: | Négociable |
|---|---|
| Prix: | Best factory price |
| Détails d'emballage: | Exportation d'emballages en bois standard. |
| Délai de livraison: | 10-15 jours ouvrables après réception de votre paiement |
| Conditions de paiement: | L/C, T/T, D/A, D/P, Western Union |
| Capacité d'approvisionnement: | 200 ensembles par mois pour cette presse à filtres industrielle |
| Zone de filtration: | 15m2 | Taille de plaque: | 630*630mm |
|---|---|---|---|
| Volume de chambre filtre: | 226L | Numéro de plaque de filtre: | 18 pcs |
| Pression de filtrage: | 0,6 MPA | Décharge de gâteau: | opération de deux travailleurs à la main |
| Puissance du moteur: | 2200W | Type de compression: | système hydraulique |
| Application: | Aliment, boisson, chimicial, minéral, pharmacie, biologique, etc. | Fonction: | Séparation, concentration, extraire, affiner, clarifier, etc. |
| Milieu de filtre: | Filtre | Méthode d'alimentation: | Alimentation centrale |
| Type de décharge liquide: | Automatique | Tension: | 380V / 220V / 400-450V / Customated |
| Conditon: | Nouveau |

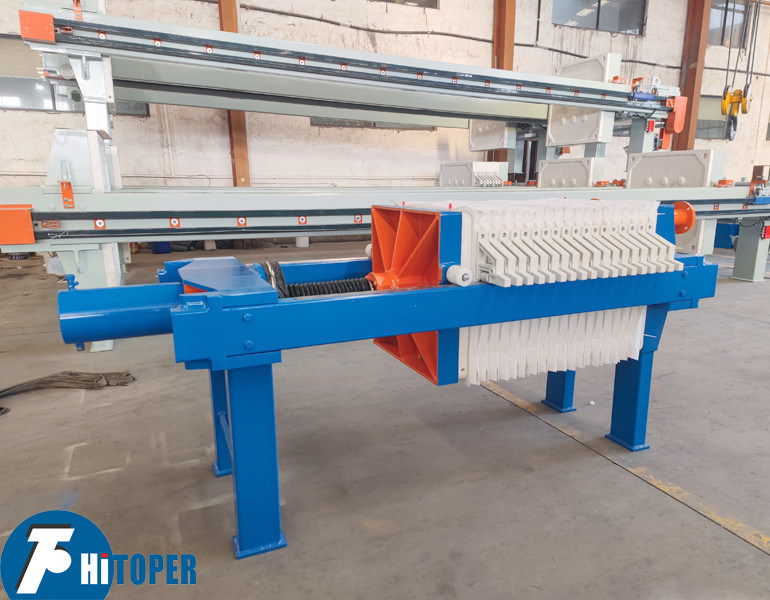

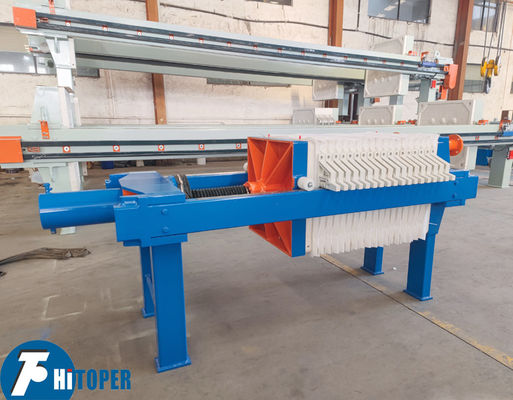

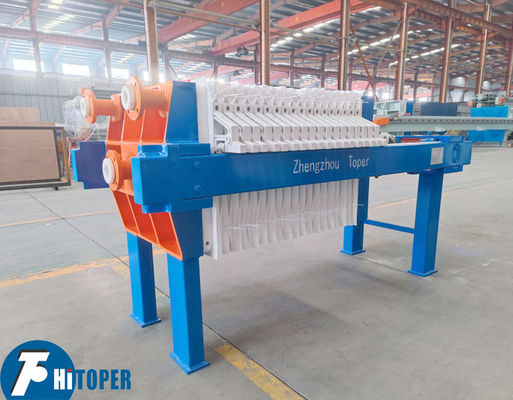

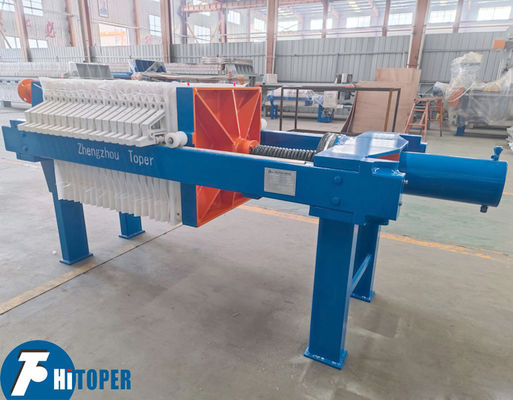

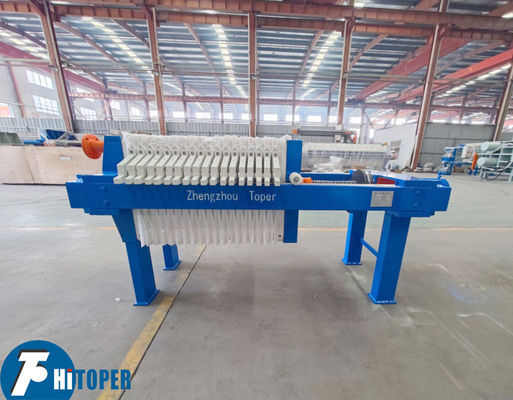

Chamber Type Wastewater Filtration Industrial Filter Press Manual Cake Discharge
This filter press is widely used in,
1.BEVERAGE / BREWING INDUSTRY.
Fruit and vegetable juices. Wine or Beer dewatering.
2.CHEMISTRY / BIOTECHNOLOGY
Production of vitamins. VC natrium. Calcium phosphate. Saleratus. Heavy alkai. Polyacrylonitrile. Pigments. Solvents. Algae (food, cosmetics). Fermentation broths (industrial biotechnology)
3.CHINESE TRADITIONAL MEDICINE
Raw Material washing. Effective ingredient extraction
4.TEXTILE
Wool degrease. Textile dewatering
5.FATS / OILS / BIOFUELS
Fish oil. Animal fats. Olive oil. Avocado oil. Palm oil. Coconut oil
6.FOOD: Starch.
Hydraulic station of this filter press equipment: 1. Hydraulic unit, carbon steel bending welding and sealing. A.Air filters external oil pumps of Shanghai Dazhong brand, with a better cooling effect and easy maintenance B.Hydraulic valves of Shanghai Huadao brand. C.High pressure oil pipe (36Mpa, 1.5m) and low pressure oil pipe (22.4Mpa, 2m), China standard soft connection.
2. Hydraulic cylinder, welded using material 27SiMn seamless steel pipe, Inner diameter and stroke is Φ120X400, pressing pressure is 18-20MPa.
3. Piston rod, Medium-frequency hardening with 45# steel, the surface hardness can be HRC48-50, and there is a protect cover outside.
Main Beam of this industrial filter press: Material of high quality carbon steel Q345 ( Length & width & thickness, 120×60×6mm rectangular tube), box welded structural design, automatic submerged arc welding process with weld smooth and beautiful. Still processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance, together with last protection of acrylic polyester anti-corrosion paint spraying.
Basic technical parameter of this filter press equipment:
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
Basic series of Toper's filter press machine:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
